Small Rotary Screw Air Compressors
2. 2 - 7. 5 kW
Nominal Pressure: 10 bar g
Motor Power: 2.2 - 7.5 kW
Volume Flow: 0.18 to 0.89 m3/min
The decision to buy a screw compressor has just become much easier thanks to the introduction of this range.
Share
FM6 lubricated screw air compressor:
The Ideal Solution for Garages & Light Industry
The decision to buy a screw compressor has just become much easier thanks to the introduction of this range. With the FM Series from screw compressor specialist Champion, even customers who require less air pressure can now enjoy the benefits of a screw compressor.

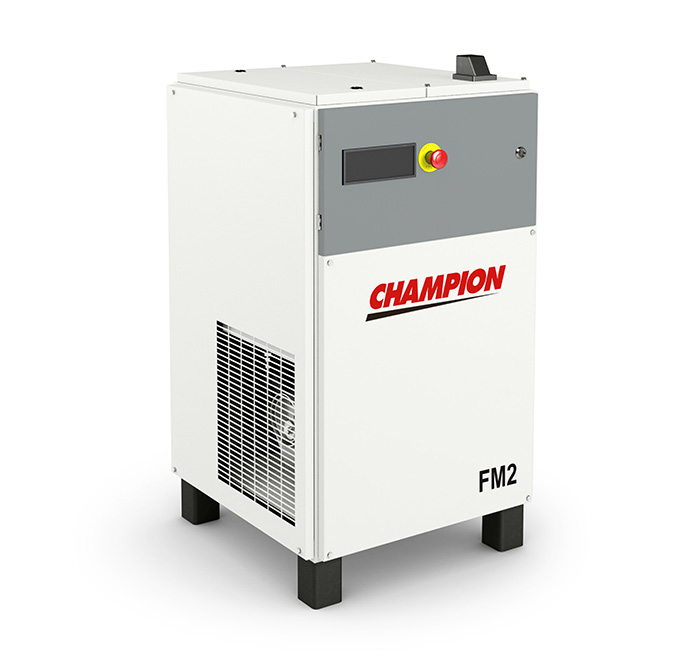

- Stand alone unit

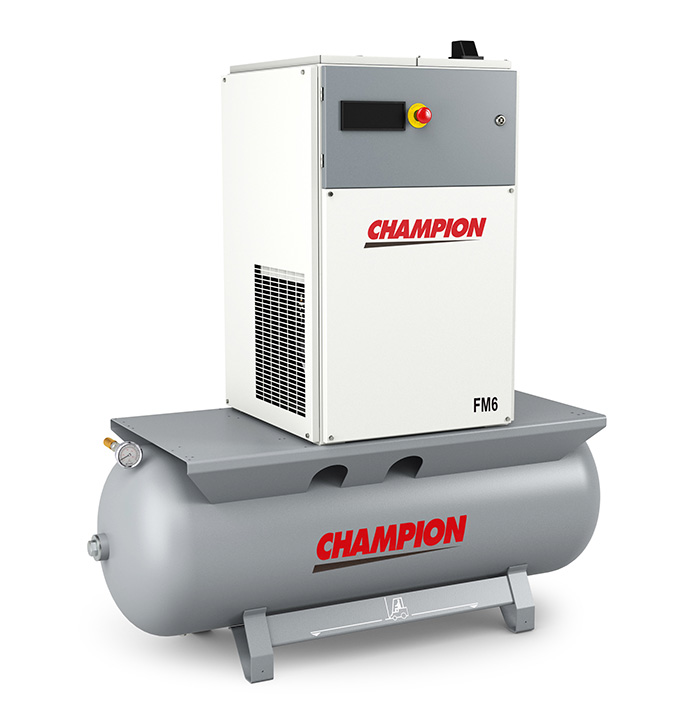

- Horizontal air receiver

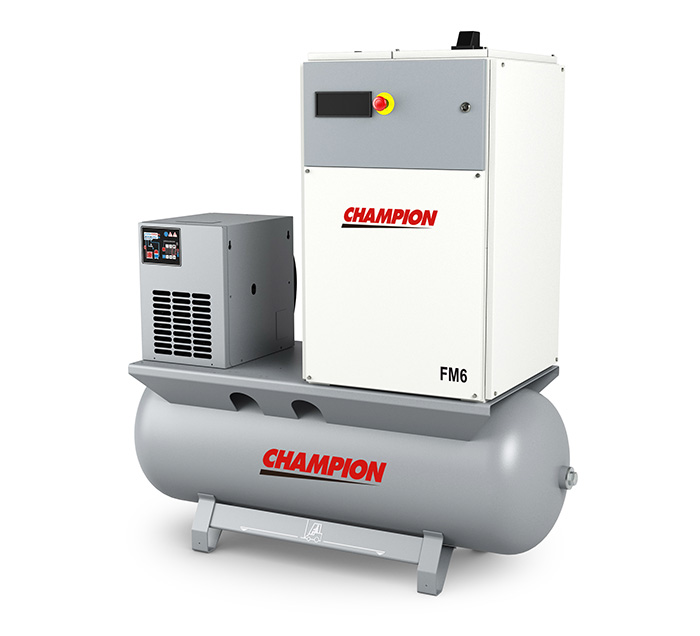

- Horizontal air receiver with on-board refrigeration dryer
- Optional filter pack with by-pass available
Noise levels
Very low noise levels have been reached thanks to optimised air and cooling, allowing the installation of the compressor at the point of use, with no additional cost for a separate compressor room or expensive pipework.
Start/Stop operation
The Start/Stop mode reduces the energy consumption as the compressor runs only when needed.
C-PRO 1.0+ control unit
The controller has been completely redesigned with the following new features and improvements:
- Better display that shows pressure, oil temperature and compressor's status (load / unload) at the same time.
- Communication port RS485 instead of RS232 (supports Modbus)
- Integrated sequencer to easily control 2 compressors
- Better appearance and plastic box for improved protection covering
- Fitted as standard in all models
- Auto restart after power failure
- Password to protect access
- Air & oil filter replacement indicator
- Separator filter replacement & oil change indicator
- Pressure setting easily adjusted
- Unload timer for both DOL & SDS configurations
FM2- FM6 Summary
- Reliable and energy efficient compressors ideal for small sized business
- Easy maintenance
- Modern compact design to reduce footprint and minimize moving parts
- Flexible design and low noise level to ease installation at the point of use
- Numerous options available
- Complete range of downstream equipment available
- Quick delivery time
- Multifunctional controller as standard
- Belt auto tensioning
- Premium airends made in house
- Airend & motor Protection
FM 2 – 7. 5kW Series: Screw Compressors
Oil flooded, single stage rotary screw compressor, belt drive, direct start or star/delta starting
Pressure Range: 10 bar
Electric motor: 2.2 to 7.5kW – IE3
Design & Benefits
FM6 lubricated screw air compressor:
The Ideal Solution for Garages & Light Industry
The decision to buy a screw compressor has just become much easier thanks to the introduction of this range. With the FM Series from screw compressor specialist Champion, even customers who require less air pressure can now enjoy the benefits of a screw compressor.
- Stand alone unit
- Horizontal air receiver
- Horizontal air receiver with on-board refrigeration dryer
- Optional filter pack with by-pass available
Noise levels
Very low noise levels have been reached thanks to optimised air and cooling, allowing the installation of the compressor at the point of use, with no additional cost for a separate compressor room or expensive pipework.
Start/Stop operation
The Start/Stop mode reduces the energy consumption as the compressor runs only when needed.
C-PRO 1.0+ control unit
The controller has been completely redesigned with the following new features and improvements:
- Better display that shows pressure, oil temperature and compressor's status (load / unload) at the same time.
- Communication port RS485 instead of RS232 (supports Modbus)
- Integrated sequencer to easily control 2 compressors
- Better appearance and plastic box for improved protection covering
- Fitted as standard in all models
- Auto restart after power failure
- Password to protect access
- Air & oil filter replacement indicator
- Separator filter replacement & oil change indicator
- Pressure setting easily adjusted
- Unload timer for both DOL & SDS configurations
FM2- FM6 Summary
- Reliable and energy efficient compressors ideal for small sized business
- Easy maintenance
- Modern compact design to reduce footprint and minimize moving parts
- Flexible design and low noise level to ease installation at the point of use
- Numerous options available
- Complete range of downstream equipment available
- Quick delivery time
- Multifunctional controller as standard
- Belt auto tensioning
- Premium airends made in house
- Airend & motor Protection

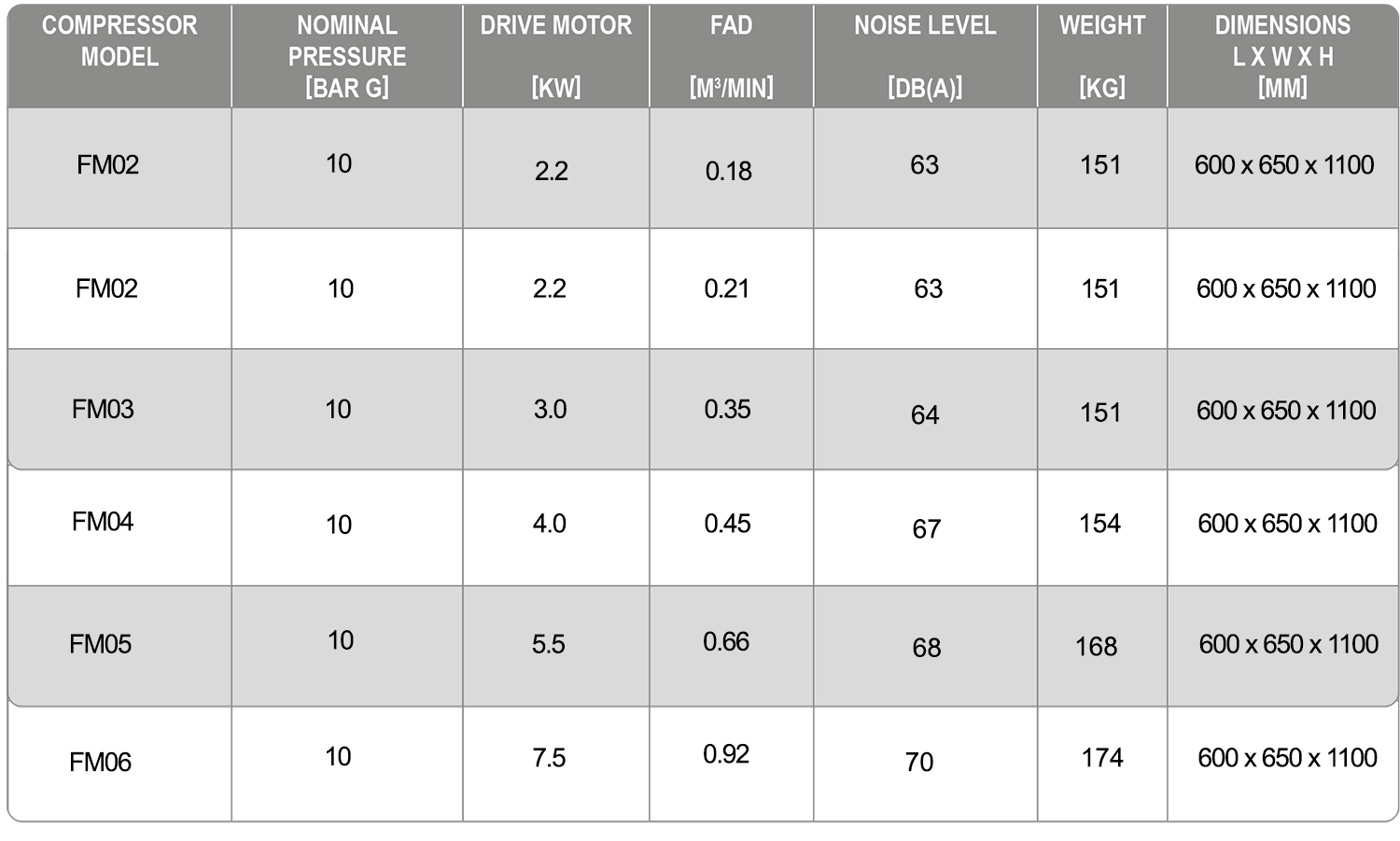

Technical Data
FM 2 – 7. 5kW Series: Screw Compressors
Oil flooded, single stage rotary screw compressor, belt drive, direct start or star/delta starting
Pressure Range: 10 bar
Electric motor: 2.2 to 7.5kW – IE3
