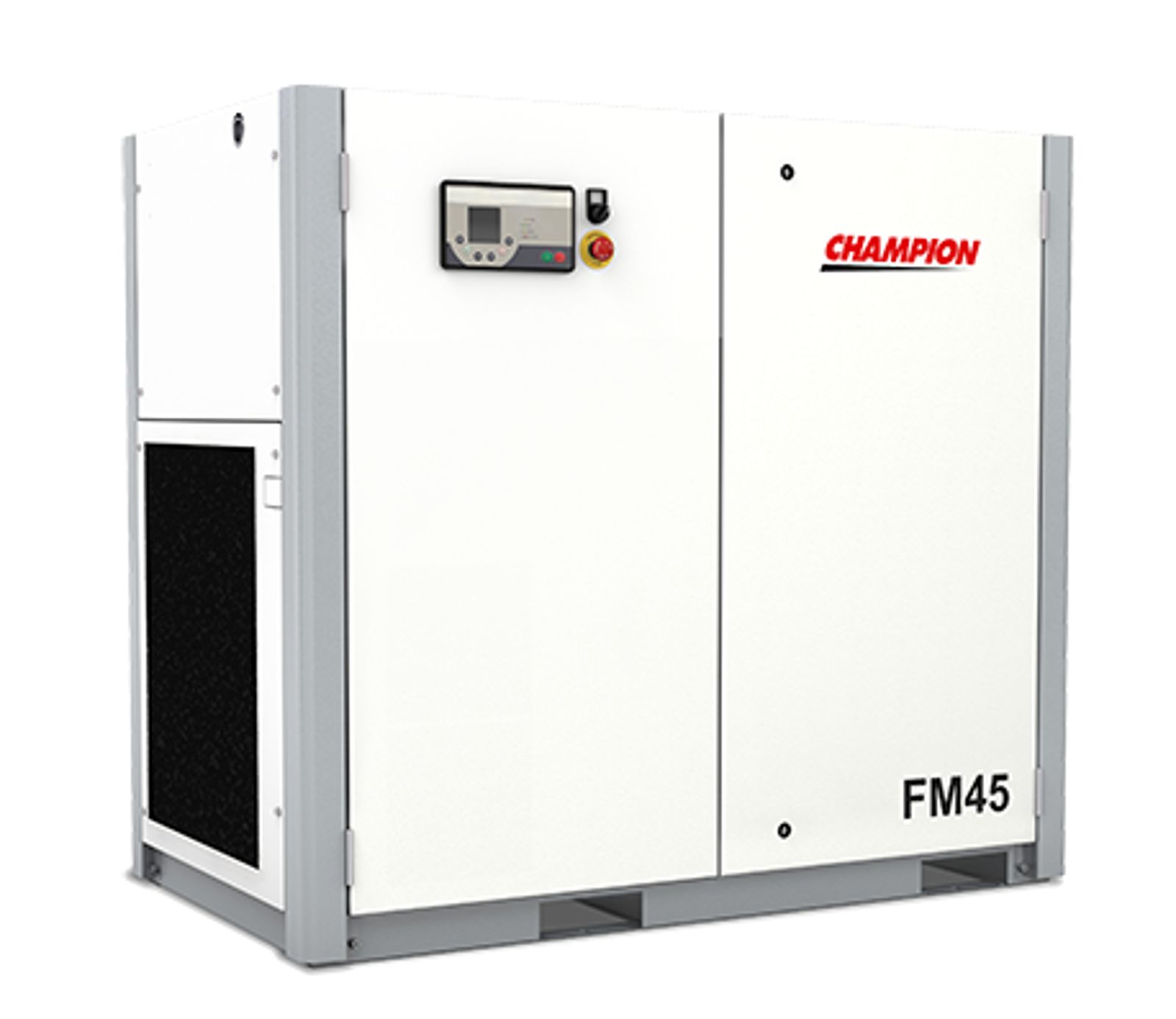

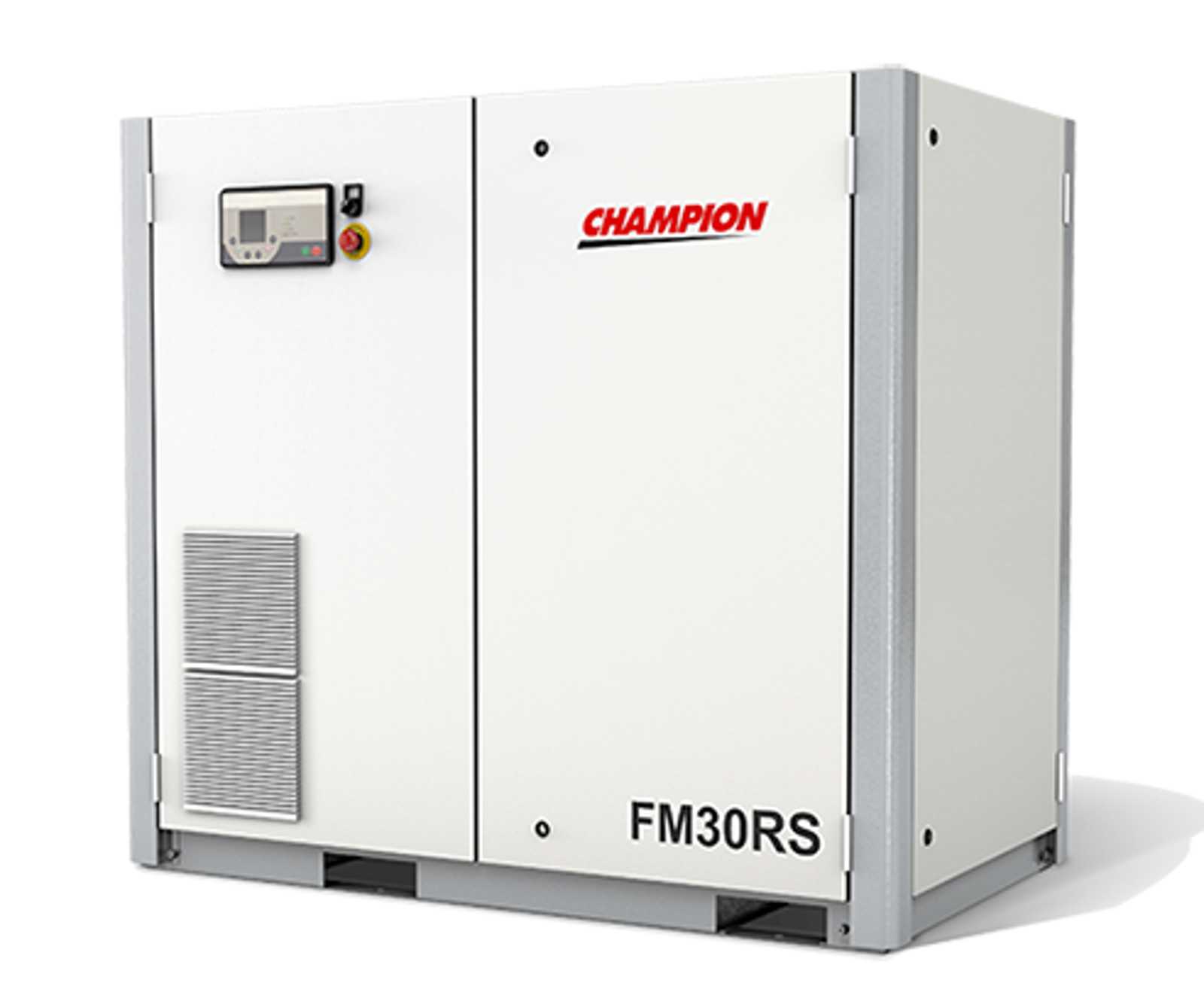

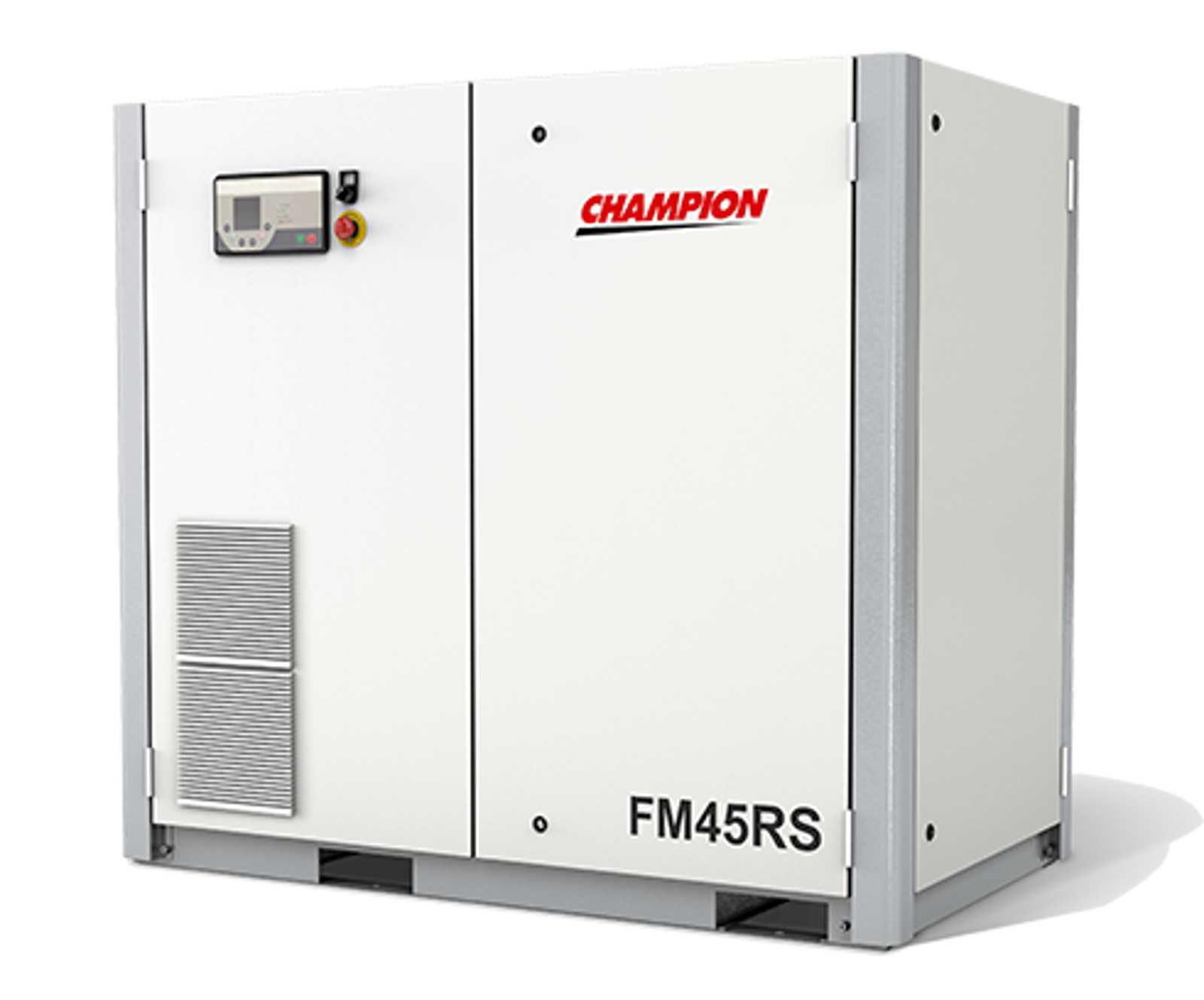

Medium Sized Screw Compressors
30 - 45 kW
Nominal Pressure: 5 to 13 bar g
Motor Power: 30 - 45 kW
Volume Flow: 1.19 to 7.84 m3/min
The new Champion 30 to 75 kW range has been completely redesigned withchanges to all parts of the compressor including the airend, the controller andthe cooling system.
Share
Premium Efficiency Airend
All our airends have the unique semi-integrated design with oil filter & intake valve as shown in the below diagram. This integrated design offers a very compact solution which is not only easy to service but minimizes leakage risks with less piping & fewer parts. New FM series 30-75 kW features premium quality airends designed and manufactured in house.
The manufacturing process is using the latest CNC rotor grinding machinery, coupled with on-line laser technology, in order to maintain precise manufacturing tolerances, click the airend video tab to learn more about this process.
High efficiency cooling system
Thanks to the optimum cooling system, the compressor can work in high ambient temperatures of up to 46°C.
Maximum durability
We maximise service life and durability by eliminating elastomer and thermoplastic pipe and tube in system pressure lines, replacing them with corrosion resistant stainless steel tubing and passive zinc coated carbon steel piping.
Champion lubricated screw compressors are used in the production of automotive parts among a wide range of other industrial processes
Premium Efficiency Airends
Watch this video to learn more about the production of the airends used in the frame 3 (30 to 45 kW) compressors at the Simmern Centre of Excellence in Germany.
The intelligent C-PRO 2. 0 controller
The C-PRO 2.0 controller was designed to make the operators’ interface with the variable speed drive transparent. This new generation controller features extra functions for variable speed compressors like drive status display and flexible PID setting according the application. You don’t need to be an expert on variable speed drives to operate your compressor. The controller takes care of the details and automatically adjusts the compressor performance to meet your changing air system demands - saving you energy. Changing the discharge pressure is as easy as pressing a button.
New advanced controller C-PRO 2.0 ensures reliable operation and protects your investment by continuously monitoring the operational parameter
- 3 analog inputs
- Temperature & Pressure controls
- Thermostatic-control
- Optional remote load/unload available
- Multi-language: 10 different languages available
- Continuous monitoring of all the parameters in the system & filters
- Motor & airend protection
- Standard sequence control up to 8 units (up to 7 units fixed speed & 1 variable speed)
- Standard Modbus
- 15 failure records in memory
- iConn remote monitoring as an option (click here to read more about iConn)
Designed for Serviceability
Maintenance personnel welcome the FM series compressor range
Service access is quick and easy with all doors able to be removed in seconds. We’ve also made sure serviceable components including filters are easily accessible and no piping needs to be disconnected to service the separator.
Optimised drive concept
With direct or gear drive coupling, the belt free FM 30-45 Series compressor range not only reduces transmission losses, it improves efficiency and reduces noise. Most importantly, it delivers greater reliability and reduced maintenance costs.
Energy efficient motor
High efficiency TEFC IE3 electric motors are fitted as standard to the entire FM 30-45 Series screw compressor range, reducing not only power consumption but also CO2 emissions.
FM 30 – 45kW Series: Screw Compressors
Oil flooded, single stage rotary screw compressor, direct drive, star / delta starting
Pressure Range: 5 to 13 bar g
Electric motor: 30 to 45kW – IE3
Design Benefits
Premium Efficiency Airend
All our airends have the unique semi-integrated design with oil filter & intake valve as shown in the below diagram. This integrated design offers a very compact solution which is not only easy to service but minimizes leakage risks with less piping & fewer parts. New FM series 30-75 kW features premium quality airends designed and manufactured in house.
The manufacturing process is using the latest CNC rotor grinding machinery, coupled with on-line laser technology, in order to maintain precise manufacturing tolerances, click the airend video tab to learn more about this process.
High efficiency cooling system
Thanks to the optimum cooling system, the compressor can work in high ambient temperatures of up to 46°C.
Maximum durability
We maximise service life and durability by eliminating elastomer and thermoplastic pipe and tube in system pressure lines, replacing them with corrosion resistant stainless steel tubing and passive zinc coated carbon steel piping.
Champion lubricated screw compressors are used in the production of automotive parts among a wide range of other industrial processes
Airend Video
Premium Efficiency Airends
Watch this video to learn more about the production of the airends used in the frame 3 (30 to 45 kW) compressors at the Simmern Centre of Excellence in Germany.
Controller
The intelligent C-PRO 2. 0 controller
The C-PRO 2.0 controller was designed to make the operators’ interface with the variable speed drive transparent. This new generation controller features extra functions for variable speed compressors like drive status display and flexible PID setting according the application. You don’t need to be an expert on variable speed drives to operate your compressor. The controller takes care of the details and automatically adjusts the compressor performance to meet your changing air system demands - saving you energy. Changing the discharge pressure is as easy as pressing a button.
New advanced controller C-PRO 2.0 ensures reliable operation and protects your investment by continuously monitoring the operational parameter
- 3 analog inputs
- Temperature & Pressure controls
- Thermostatic-control
- Optional remote load/unload available
- Multi-language: 10 different languages available
- Continuous monitoring of all the parameters in the system & filters
- Motor & airend protection
- Standard sequence control up to 8 units (up to 7 units fixed speed & 1 variable speed)
- Standard Modbus
- 15 failure records in memory
- iConn remote monitoring as an option (click here to read more about iConn)
Serviceability
Designed for Serviceability
Maintenance personnel welcome the FM series compressor range
Service access is quick and easy with all doors able to be removed in seconds. We’ve also made sure serviceable components including filters are easily accessible and no piping needs to be disconnected to service the separator.
Optimised drive concept
With direct or gear drive coupling, the belt free FM 30-45 Series compressor range not only reduces transmission losses, it improves efficiency and reduces noise. Most importantly, it delivers greater reliability and reduced maintenance costs.
Energy efficient motor
High efficiency TEFC IE3 electric motors are fitted as standard to the entire FM 30-45 Series screw compressor range, reducing not only power consumption but also CO2 emissions.

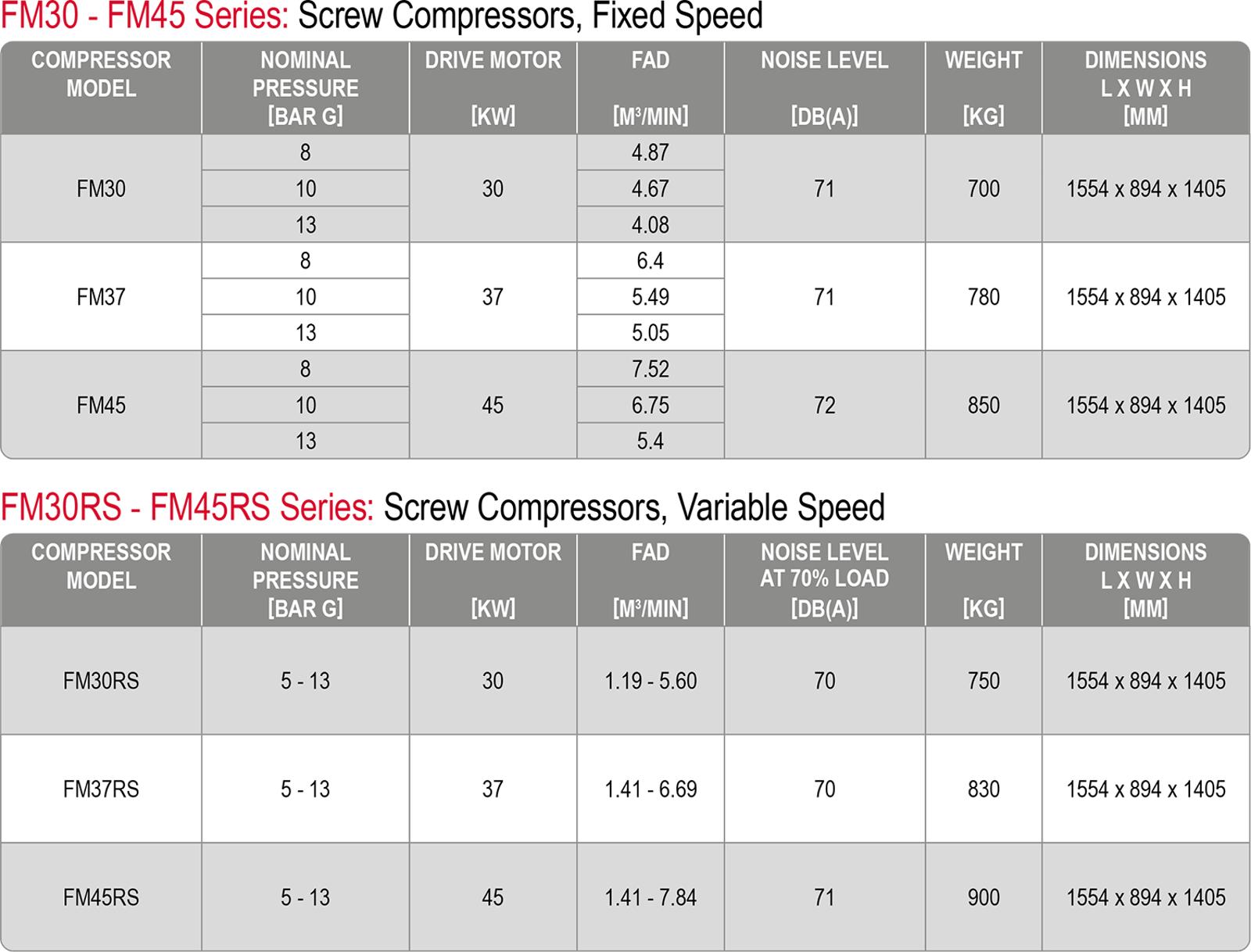

Technical Data
FM 30 – 45kW Series: Screw Compressors
Oil flooded, single stage rotary screw compressor, direct drive, star / delta starting
Pressure Range: 5 to 13 bar g
Electric motor: 30 to 45kW – IE3
